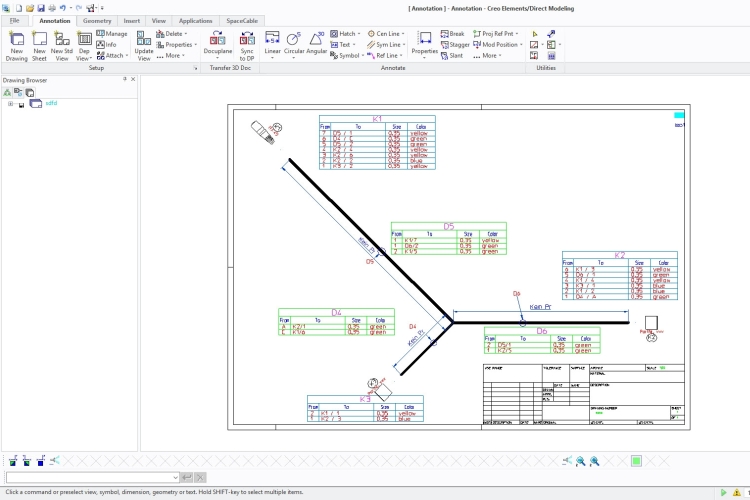

Cable Manufacturing Drawings

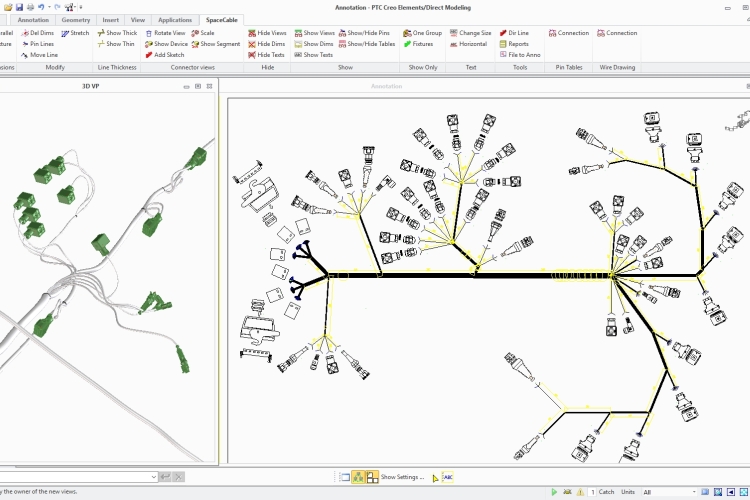

Drawing for the Nailboard



Main Features

  • Associativity between 3D and 2D
  • Flattening with original size (1 to 1) or scaled size
  • Automatic Dimensioning
  • Placement of manufacuring notes
  • Generation of Bill-of-Materials
  • Full customizable 2D output
  • Export of wire length information
  • Export of connection list
  • Export of protections list
