SpaceCable

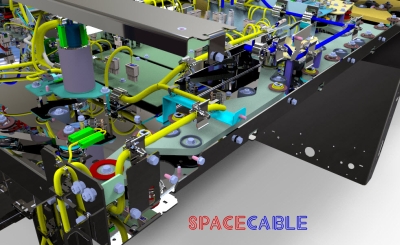

  SpaceCable software automates the design and manufacturing of wires, cables, and harnesses. With SpaceCable, the wiring harness is designed within the 3D model created using PTC's Creo Elements/Direct (Cocreate Modeling) software. The 3D modeling approach assures accurate design and assembly data and reduces or eliminates the need for physical prototypes.
The user can interactively and automatically route cables and wires into harnesses, check clearances, determine wire and cable lengths, calculate bundle diameters, and produce 2D manufacturing documentation.

Automated Processes
3D center-line router
Pin assignment
Fixture assignment
Cable channel definition
Connector alignment
Cable routing along paths
Database-based wire/cable selection
Variation-design
Unfold into 2D formboard
Formboard annotation

Automatic Calculations
 Wire lengths
Bundle diameters
Total harness weight

Entities Supported
Harness
Multi-level harness
Cables
Wires
Bundles
Channels
Entry Port
Routes
Jackets
Path points
Cable portions
Markers
Tie warps
Multi-core cables
Connectors and sockets
Harness Centerline
Channel breaks
Wire cross section
Outer wire diameter

User Defined Reports

Connector list
Bending list
Channel list
From-to-via list
Wire specifications
Wire lengths
Bundle diameters
Manufacturing notes
