SpaceCable V20 Enhancements

New Fixtures


Now every fixture has  workplanes with defined 'passing points' in a container under the part.
Depending on the first wire selected, which goes through the fixture, a workplane is selected for passing points.
Wires which are added to the fixture find next empty point on the workplane to pass through the fixture.

View Video

New option for modifications of fixtures


There is now a new option for rotating the fixtures precisely.  All fixture modification commands like 'Move', 'Free' and'Wire to Cable Tie' have this option.

View Video

New Terminal Library


Now there is a completely rewritten terminal library, which includes heat shrink tubes and 2D views also.

View Video

New Fixture Library


Now there is a completely rewritten fixture library, which includes passing points on the fixtures next to several new fixture elements..

View Video

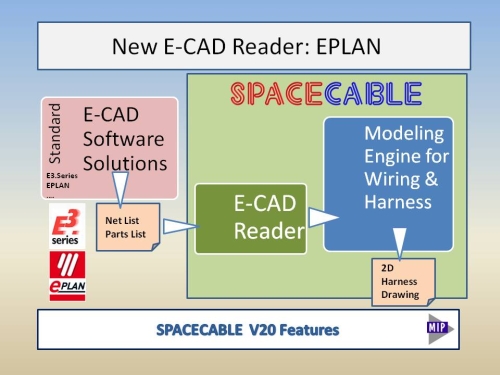

New E-CAD Reader: EPLAN


Next to the existing E-CAD Reader for E3.series it is now possible to read Net List and Parts List data from EPLAN as well.
