SpaceCable V20 Enhancements

Bundling of Wires

Now it is possible to bundle loose wires together and add tie wraps around them with the new functionality "Wire Bundle Editor"




Bridges in Pin Tables

Now it is possible to list the bridges in pin tables

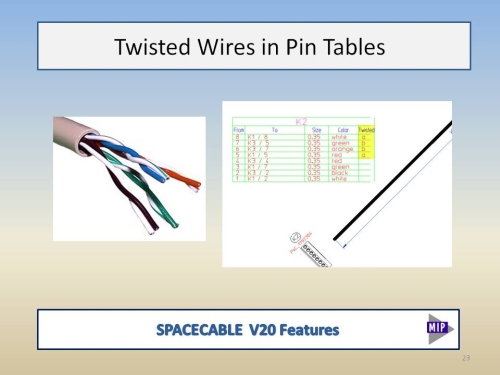

Twisted Wires in Pin Tables

Now it is possible to list the twisted cables in pin tables

.

Pin Table Customization

Annotation Pin Tables are now fully customizable in color and text sizes (Check the beginning of the file 'sc_draw_pin_table.lsp‘).

For example here is shown, how Annotation Pin Tables show now bridges in a separate column or how Annotation Pin Tables show now twisted wires in a separate column.

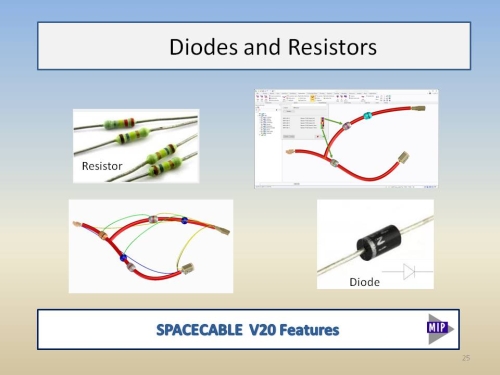

Diodes and Resistors (available at  Automotive Accelerator)

New functionalites for resistors and diodes are added to the module "Automotive Accelerator".

Like splices,  resistors and diodes can be placed to the channel and wires can be connected to them.
Resistors/Diodes can be defined in the customization files.

Manual wire connection methods can be used  to connect to Resistors and Diodes as well.

They will be listed in BOM and get their own pin tables in cabling manufacturing drawings.
